Herringbone Installation

These instructions are intended to help you lay out and design a herringbone pattern. For actual installation instructions and methods, please see the general installation guide.

45 degree herringbone pattern



Tools and supplies needed

  • Chop saw
  • Straight edge or Speed Square®
  • Pencil or other non-permanent marker
  • Chalk line
  • Fine-grit sandpaper (400–600 grit)
  • Loctite® PL Premium® or LePage® PL Premium®.

The herringbone pattern is laid at a 45-degree angle. All angles, whether cut or placed,
are at 45 degrees.

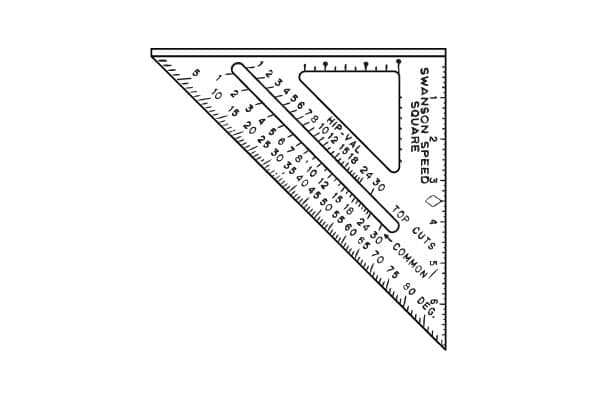

Using a Speed Square® is recommended for this pattern installation. The speed
square is a triangle with one 90° and two 45° angles.
1_speedsquare

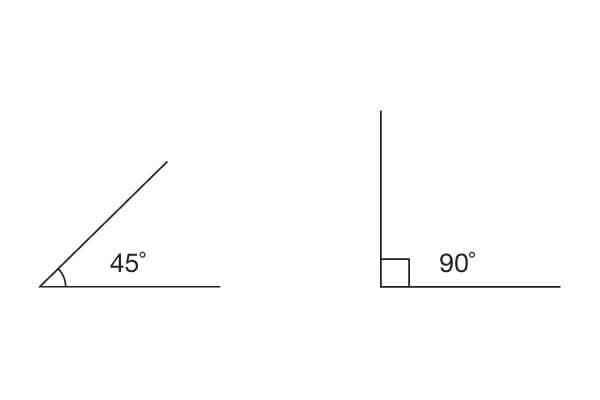

Review: 45° & 90° angles
2_angles

A 45° herringbone pattern requires three components

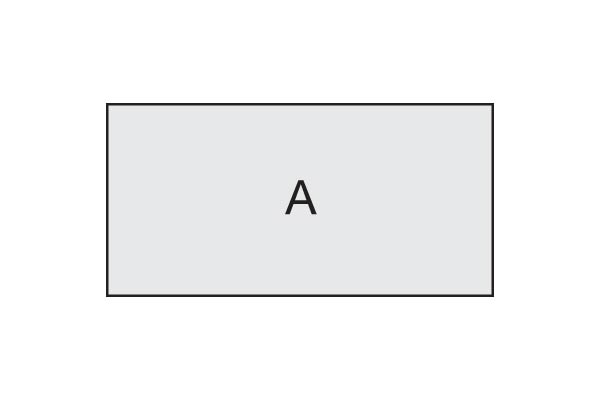

The first is a full tile (A).
3_tilea

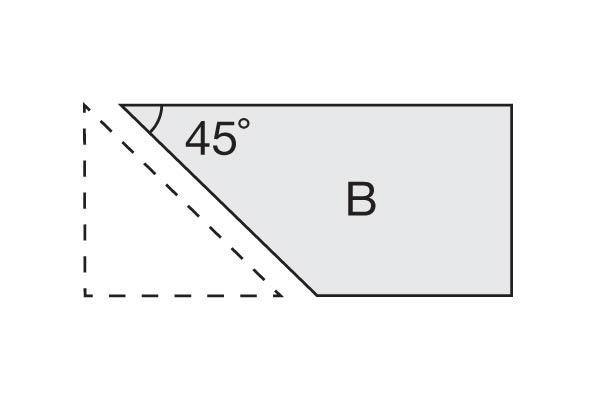

The second is a tile with a corner cut off at 45° (B).
4_tileb

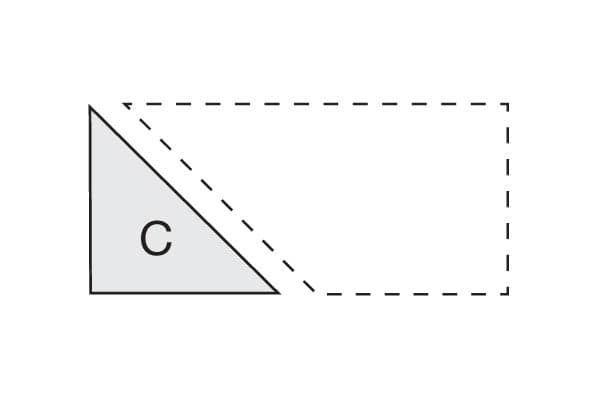

The third is the remaining corner (C).
5_tilec

Measure, mark and snap lines if necessary for edges, guides or top of work area. For
example, snap a line at 6-3/8″ above the countertop height to align top points of first
row of tiles, if desired.

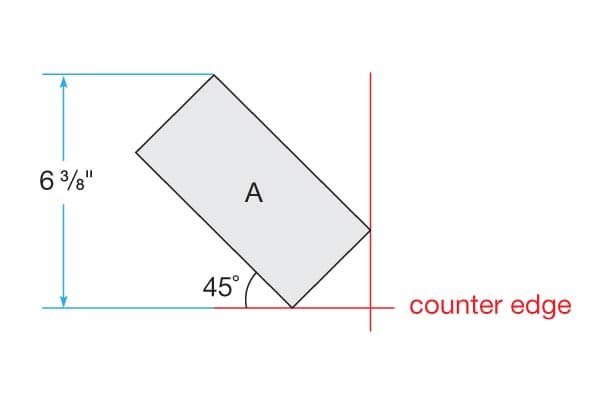

To start, place a full tile (A) tilted at 45° against the edge or corner of the work area (in
our example, the right, bottom side). Lay the tile along the side of the speed square to
keep the tile at the correct angle.
6_counteredge

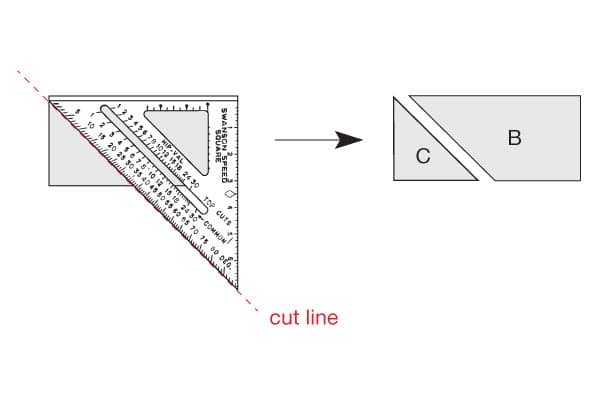

Mark a tile using your Speed Square® and pencil, drawing a cut-line from one corner at
45°. Using the chop saw (miter box) cut the tile on the marked line. 7_cutline

Note: Depending on the miter saw you’re using, you
may need to compensate for the saw’s blade width.
We recommend you “cut out” the cut-line, (center of
saw blade cuts center of cut-line) instead of cutting on
either side of the line as usual. Any gap should be left
on the bottom or side terminations when applying cut
tile parts B and C.

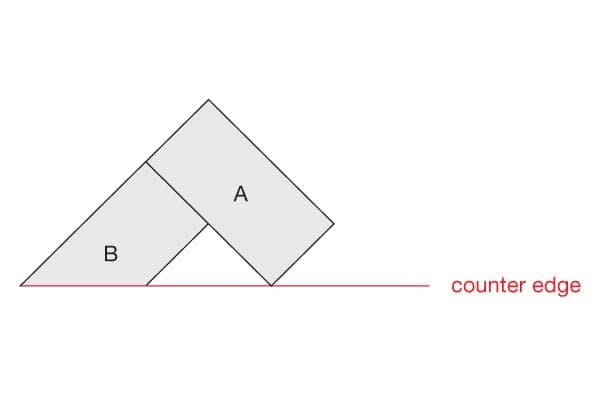

Then place a corner-cut tile (B) as shown below.
8_countertileplacement

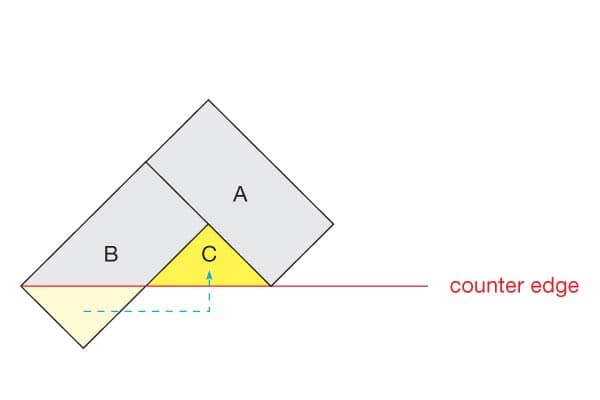

Fill in the remaining triangular area with the cut corner (C).
910_ctile_spacefill

Always push part C up against A and B. Any gap that remains at the bottom countertop
can be caulked later.
910_ctile_spacefill

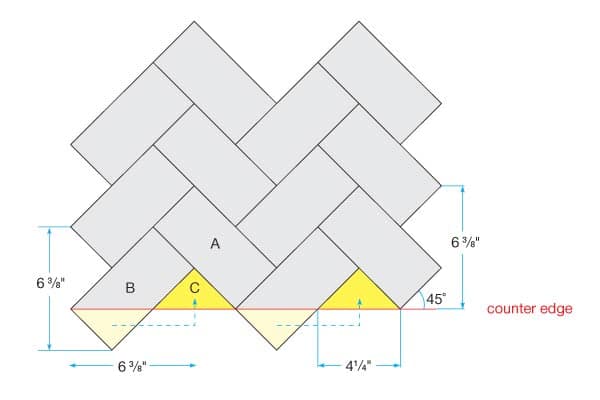

Continue to stack and stick tiles as shown below.
11_patternrepeat

For each vertical edge (left and right sides), fill open spaces with cut corners (C) or
measure and cut custom pieces as needed.
If the cut pieces are smaller than half of a tile, an additional adhesive may be needed to
get the smaller pieces to adhere properly. The recommended adhesive is Loctite® PL Premium® or LePage® PL Premium®. Carefully read and follow manufacturer’s directions for the adhesive.

Measure and cut remaining fill pieces for the top as needed.
Caulk the bottom, sides or top of the tiled area as needed.
